Wall mounted cantilever crane

product overview

Cantilever crane is a small and medium-sized lifting equipment that has developed in recent years. It has a unique and reliable structure, and is characterized by energy saving, time-saving, labor-saving, and flexibility. It can be operated freely in three-dimensional space and demonstrates its superiority over other conventional lifting equipment in situations of interval and dense transportation. This product is widely used in various industries and places. The working intensity of a cantilever crane is light. The crane consists of a column, a slewing arm slewing drive device, and an electric hoist. The lower end of the column is fixed to the concrete foundation through anchor bolts, and the slewing arm is driven to rotate by a cycloidal pinwheel reduction device. The electric hoist runs in a straight line on the slewing arm I-beam and lifts heavy objects. The rotating arm of the crane is a hollow steel structure, which has a light weight, a large span, a large lifting capacity, and is economical and durable. Built in rotating arm crane MODE type walking mechanism, using special engineering plastic walking wheels with rolling bearings, with low friction and light and agile walking; The small structural size is particularly advantageous for increasing the hook travel.

CLASSIFICATION

The cantilever crane series can be divided into:

1. Fixed column cantilever crane

2. JKBK fixed column cantilever crane

3. Mobile cantilever crane

4. Wall mounted cantilever crane

5. Wall mounted cantilever crane

6. Light gantry cantilever crane

7. Curved arm cantilever crane

8. Double arm cantilever crane

Product Features

Cantilever crane is a new generation of lightweight lifting equipment designed to adapt to modern production. It is particularly suitable for short distance, frequent use, and intensive lifting operations, and is equipped with a reliable electric chain hoist. It has the characteristics of energy saving, labor-saving, small footprint, and easy operation and maintenance.

Fixed column cantilever crane

The fixed column cantilever crane, also known as the column type cantilever crane, has a lifting capacity ranging from 125Kg to 5000Kg. It can be designed and customized as a specialized lifting equipment according to customer needs.

The column type rotary arm crane has the advantages of novel structure, rationality, simplicity, easy operation, flexible rotation, and large working space. It is a material lifting equipment that can be widely used for the up and down work of production lines, assembly lines, and machine tools in factories, mines, workshops, as well as the lifting of heavy objects in warehouses, docks, and other occasions.

The fixed column jib crane can be divided into BZD type and BZD-JKBK type according to the different types of steel used for its jib.

traveling portal jib crane

This machine is more flexible and adaptable, and is a separate emergency lifting equipment for automatic production lines. With it, the production line can be ensured to be unobstructed.

The EBZ mobile electric rotary arm crane has the characteristics of flexibility, adaptability, etc. It is a separate emergency lifting equipment on the automatic production line, which can ensure the smooth operation of the production line. The lifting capacity ranges from 125KG to 500KG.

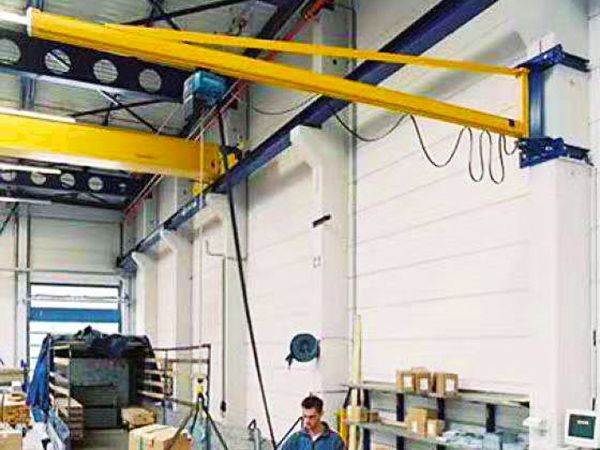

Wall mounted cantilever crane

Wall mounted cantilever crane, also known as wall crane or column mounted cantilever crane. It can be divided into BX type wall mounted jib crane and BX-JKBK type wall mounted jib crane, with a lifting capacity of 125KG to 3000KG. The lifting height is 3 meters.

Wall mounted cantilever crane

Wall mounted cantilever crane, also known as wall mounted crane, is a new type of material lifting equipment developed on the basis of wall mounted cantilever crane. The machine's walking track is installed on the cement column of the factory building, and can move longitudinally along the track. At the same time, the electric hoist can also complete the lateral movement along the selector arm and the vertical lifting. This machine greatly expands the scope of operations, makes more effective use of factory space, and has a more ideal usage effect. The lifting capacity ranges from 1000KG to 5000KG, and the lifting height can be customized by customers.

Curved arm cantilever crane

Curved arm cantilever crane, also known as a curved arm crane, has the characteristics of novel structure, flexible extension and bending, easy operation, and energy saving. When operating, press the button to lift the load, and use the bending and rotating motion of the crossbeam to avoid objects in the controlled work area, making the work area larger. Gently push and pull with your hands to reach any position in the work area. Curved arm crane is suitable for production or maintenance occasions in industries such as mechanical manufacturing, railway, chemical, and light industry. Especially in production lines with dense equipment, short distance lifting, and frequent operations, the application of this product can improve production efficiency. The lifting capacity ranges from 125KG to 500KG.
