European style crane

European style cranes have the advantages of light weight, compact structure, and low energy consumption. A small car and lifting mechanism are installed on the bridge, and the small car can run forward and backward, while the large car can run and other mechanisms are used to transport materials and objects in three-dimensional space. European style cranes adopt a unique design concept and have the characteristics of small size, light weight, and small wheel pressure. Compared with traditional cranes, the distance from the hook to the wall is smaller and the clearance height is lower. The Keli crane can operate closer to the front and has a higher lifting height, which actually increases the effective working space of the existing factory building. Due to the lightweight and low wheel pressure characteristics of cranes, the new factory space can be designed to be smaller and more fully functional. A smaller factory building means significant savings in initial construction investment, as well as long-term heating, air conditioning, and other maintenance costs.

Product Concept

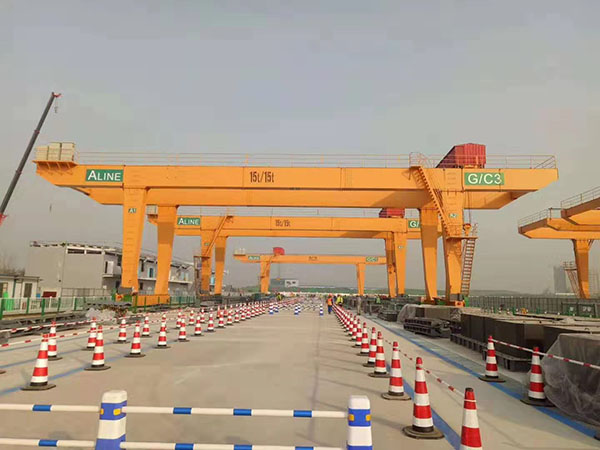

European style crane is a type of gantry crane with a medium bridge. There is no concept of European style crane in professional terminology. It is a requirement for gantry cranes proposed by domestic crane users based on the characteristics of compact structure, light weight, energy saving, low noise, combined with advanced European crane technology. It is a clear market demand and a new definition for gantry cranes.

The concept of European style cranes has emerged in the industry in recent years, with the aim of distinguishing them from traditional, Soviet style, and domestically produced cranes. Mainly including: bridge crane, gantry crane, cantilever crane, flexible beam crane, explosion-proof crane and other industrial cranes.

European style cranes are based on the European concept of lightweight and modular design, as well as advanced manufacturing processes, which make the entire crane structure compact, operate smoothly, reduce its own weight, lower its height, save energy and reduce consumption, greatly reducing the construction cost of the crane operation plant and the crane operation cost for users, and improving the overall quality and operational performance of the crane. European style cranes will become the development trend and mainstream market demand for cranes.

Structural characteristics

Main beam section

1. The main beam adopts a square box shaped Ankang H-shaped steel structure design, similar to the traditional simple type of crane, with a heavier self weight;

2. All main welds undergo non-destructive testing;

3. The steel plate material is domestically common steel (Q235B);

4. The vertical curvature is in accordance with Chinese national standards;

5. Like traditional Chinese cranes, all steel plates undergo shot blasting pretreatment to achieve Sa2.5 level standardization;

6. Carefully inspect and clean the steel plate before welding, usually using an automatic welding machine (MIG or semi-automatic welding) for welding;

End beam section

1. The end beam is formed by welding rectangular steel pipes or steel plates, and the formed end beam is positioned and processed once by a CNC machine to achieve the allowable deviation range, ensuring national dimensional accuracy and fit tolerance;

2. Each end beam is equipped with wheels with double rims, buffers, and anti derailment protection devices;

3. A maintenance platform (maintenance walkway) is arranged on the driving side of the double girder crane along the main beam direction;

4. The main beam and end beam are connected by high-strength bolts to ensure the accuracy and smooth operation of the whole machine;

Product advantages

European style bridges and gantry cranes have light weight, small equipment clearance height, large working range, use components, strict manufacturing quality control, and produce high cost-effective products that are safe, reliable, have excellent performance, and require minimal maintenance. Compared with traditional industrial cranes, the main advantages of European cranes can be divided into the following aspects:

1. Reduce customer investment, fully utilize factory space, and improve production efficiency

European style crane products have the characteristics of light weight, small wheel pressure, low equipment height, compact structure, and small space occupation. They adopt internationally advanced technology and adopt reasonable structures from the trolley, end beam to the main beam, with a much lighter weight than traditional cranes. Therefore, while meeting the same requirements, the height of the factory building can be reduced, the cross-sectional size of the rail support beam can be reduced, the bearing capacity of the cow legs and pile foundations can be reduced, and the requirements for the track and power supply sliding line can be lowered, resulting in a decrease in the comprehensive investment of users in the factory building and lifting equipment.

Taking the EW series European style crane as an example, compared with traditional lifting carts in China, the EW European style crane cart reduces its own weight by more than 30%, significantly reduces the net height of equipment, can effectively reduce the comprehensive construction cost of user factories, and has obvious energy-saving and consumption reducing advantages.
